dict_entry_internal
[container_internal]

Collaboration diagram for dict_entry_internal:

Detailed Description

Module for manage EasyDbus Dict Entry Internals.

Functions for manage easydbus dict entry containers

For easydbus developers:
If a container is used for dict_entry data, then:

Dict_Entry Meta Information

Contact:
Daniele Rondina aka Ge@@ru <geaaru@gmail.com>
Status:
EasyDbus Core Library
License:
GPL
Contributor(s):


Functions

int easydbus_add_dict_entry_tomsg (DBusMessage *msg, DBusMessageIter *iter, struct EasyDbus_elem *el)
 Add unique dict entry element to DBusMessage.
struct EasyDbus_container * easydbus_dict_entry_build_container (enum event_type type, void *container, DBusMessageIter *iter)
 Create a dict entry container from iter passed in input.

Function Documentation

int easydbus_add_dict_entry_tomsg ( DBusMessage *  msg,
DBusMessageIter *  iter,
struct EasyDbus_elem *  el
)

Add unique dict entry element to DBusMessage.

For internal use only.

Parameters:
msg pointer to DBusMessage used for insert dict entry element.
iter pointer to DBusMessageIter (array initialize iterator)
el pointer to dict_entry element.
Returns:
-1 error

0 ok

With new version signature of dict entry MUST be null

signature = prepare_signature (el, EASYDBUS_SIGNATURE_NORMAL); EasyDbusDebug ("Signature of Dict Entry = %s\n", signature); if (signature == NULL) return -1;

Definition at line 206 of file dict_entry_internal.c.

References add_variant_to_container_on_msg(), EasyDbus_elem::byte, EasyDbus_elem::Double, EASYDBUS_ELTYPE_BOOLEAN, EASYDBUS_ELTYPE_BYTE, EASYDBUS_ELTYPE_DOUBLE, EASYDBUS_ELTYPE_INT16, EASYDBUS_ELTYPE_INT32, EASYDBUS_ELTYPE_INT64, EASYDBUS_ELTYPE_OBJECT_PATH, EASYDBUS_ELTYPE_SIGNATURE, EASYDBUS_ELTYPE_STRING, EASYDBUS_ELTYPE_UINT16, EASYDBUS_ELTYPE_UINT32, EASYDBUS_ELTYPE_UINT64, EASYDBUS_ELTYPE_VARIANT, EasyDbusDebug, EasyDbus_elem::i16, EasyDbus_elem::i32, EasyDbus_elem::i64, EasyDbus_elem::next, EasyDbus_elem::p_container, EasyDbus_container::p_data, EasyDbus_elem::payload, EasyDbus_elem::type, EasyDbus_elem::ui16, EasyDbus_elem::ui32, and EasyDbus_elem::ui64.

Referenced by add_array_to_msg(), and easydbus_add_array_on_container_tomsg().

00209 {
00210    int i;
00211    DBusMessageIter iter2;
00212    struct EasyDbus_elem *dict_entry = NULL;
00213    //char *signature = NULL;
00214    int ret_val = 0;
00215
00224    dbus_message_iter_open_container (iter,
00225                                      DBUS_TYPE_DICT_ENTRY, NULL,
00226                                      //DBUS_TYPE_DICT_ENTRY, signature,
00227                                      &iter2);
00228    dict_entry = (struct EasyDbus_elem *)
00229       el->payload.p_container->p_data;
00230
00231    for (i = 0; i < 2; i++) {
00232       switch (dict_entry->type) {
00233          case EASYDBUS_ELTYPE_STRING:
00234             dbus_message_iter_append_basic (&iter2,
00235                                             DBUS_TYPE_STRING,
00236                                             &dict_entry->payload.
00237                                             string);
00238             break;
00239          case EASYDBUS_ELTYPE_BYTE:
00240             dbus_message_iter_append_basic (&iter2,
00241                                             DBUS_TYPE_BYTE,
00242                                             &dict_entry->payload.
00243                                             byte);
00244             break;
00245          case EASYDBUS_ELTYPE_BOOLEAN:
00246             dbus_message_iter_append_basic (&iter2,
00247                                             DBUS_TYPE_BOOLEAN,
00248                                             &dict_entry->payload.
00249                                             boolean);
00250             break;
00251          case EASYDBUS_ELTYPE_DOUBLE:
00252             dbus_message_iter_append_basic (&iter2,
00253                                             DBUS_TYPE_DOUBLE,
00254                                             &dict_entry->payload.
00255                                             Double);
00256             break;
00257          case EASYDBUS_ELTYPE_INT16:
00258             dbus_message_iter_append_basic (&iter2,
00259                                             DBUS_TYPE_INT16,
00260                                             &dict_entry->payload.i16);
00261             break;
00262          case EASYDBUS_ELTYPE_UINT16:
00263             dbus_message_iter_append_basic (&iter2,
00264                                             DBUS_TYPE_UINT16,
00265                                             &dict_entry->payload.
00266                                             ui16);
00267             break;
00268          case EASYDBUS_ELTYPE_INT32:
00269             dbus_message_iter_append_basic (&iter2,
00270                                             DBUS_TYPE_INT32,
00271                                             &dict_entry->payload.i32);
00272             break;
00273          case EASYDBUS_ELTYPE_UINT32:
00274             dbus_message_iter_append_basic (&iter2,
00275                                             DBUS_TYPE_UINT32,
00276                                             &dict_entry->payload.
00277                                             ui32);
00278             break;
00279          case EASYDBUS_ELTYPE_INT64:
00280             dbus_message_iter_append_basic (&iter2,
00281                                             DBUS_TYPE_INT64,
00282                                             &dict_entry->payload.i64);
00283             break;
00284          case EASYDBUS_ELTYPE_UINT64:
00285             dbus_message_iter_append_basic (&iter2,
00286                                             DBUS_TYPE_UINT64,
00287                                             &dict_entry->payload.
00288                                             ui64);
00289             break;
00290          case EASYDBUS_ELTYPE_OBJECT_PATH:
00291             dbus_message_iter_append_basic (&iter2,
00292                                             DBUS_TYPE_OBJECT_PATH,
00293                                             &dict_entry->payload.
00294                                             string);
00295             break;
00296          case EASYDBUS_ELTYPE_SIGNATURE:
00297             dbus_message_iter_append_basic (&iter2,
00298                                             DBUS_TYPE_SIGNATURE,
00299                                             &dict_entry->payload.
00300                                             string);
00301             break;
00302          case EASYDBUS_ELTYPE_VARIANT:
00303             if (add_variant_to_container_on_msg
00304                 (msg, dict_entry, &iter2)) {
00305                ret_val = -1;
00306                goto end;
00307             }
00308             break;
00309          default:
00310             EasyDbusDebug ("Element not managed!");
00311             ret_val = -1;
00312             goto end;
00313             break;
00314       }
00315       dict_entry = dict_entry->next;
00316    }                            // end of for with i
00317  end:
00318    dbus_message_iter_close_container (iter, &iter2);
00319 //   free (signature);
00320    return ret_val;
00321 }

Here is the call graph for this function:

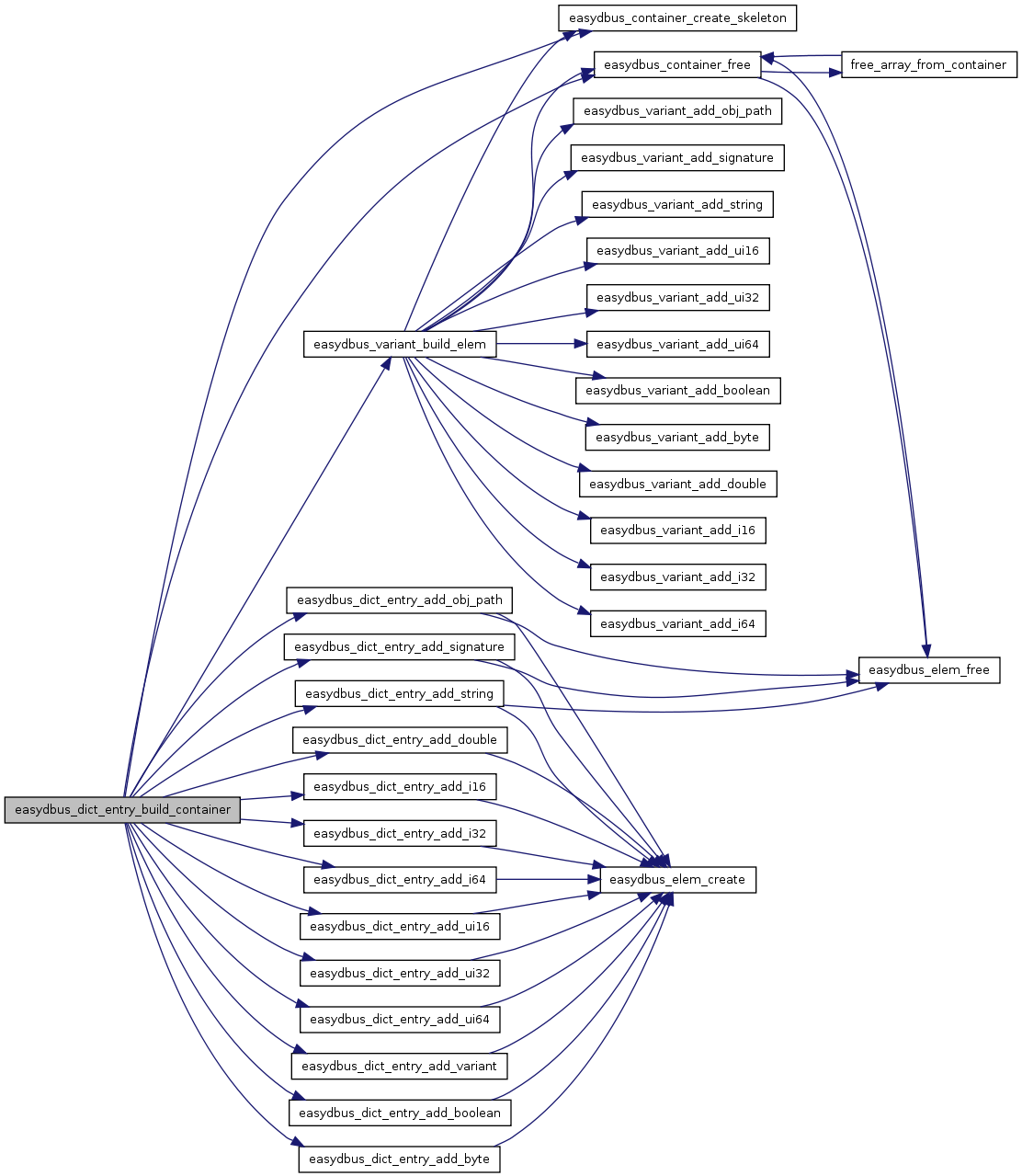

struct EasyDbus_container* easydbus_dict_entry_build_container ( enum event_type  type,
void *  container,
DBusMessageIter *  iter
) [read]

Create a dict entry container from iter passed in input.

For internal use only.

Parameters:
type type of message object
container pointer to message object
iter pointer to DBusMessageIter where recover data about dict entry from DBusMessage.
Returns:
NULL on error

pointer to new dict entry container.

Definition at line 64 of file dict_entry_internal.c.

References easydbus_container_create_skeleton(), easydbus_container_free(), easydbus_dict_entry_add_boolean(), easydbus_dict_entry_add_byte(), easydbus_dict_entry_add_double(), easydbus_dict_entry_add_i16(), easydbus_dict_entry_add_i32(), easydbus_dict_entry_add_i64(), easydbus_dict_entry_add_obj_path(), easydbus_dict_entry_add_signature(), easydbus_dict_entry_add_string(), easydbus_dict_entry_add_ui16(), easydbus_dict_entry_add_ui32(), easydbus_dict_entry_add_ui64(), easydbus_dict_entry_add_variant(), EASYDBUS_ELTYPE_DICT_ENTRY, easydbus_variant_build_elem(), EasyDbusDebug, and EasyDbus_container::signature.

Referenced by easydbus_get_marshal_data_from_array().

00067 {
00068    struct EasyDbus_container *dict_entry = NULL;
00069    struct EasyDbus_container *variant = NULL;
00070    DBusMessageIter subiter;
00071    int i32 = 0, i = 0;
00072    unsigned int ui32 = 0;
00073    short i16 = 0;
00074    char byte = 0;
00075    char *string = NULL;
00076    unsigned short ui16 = 0;
00077    long long i64 = 0;
00078    double d = 0;
00079    unsigned long long ui64 = 0;
00080
00081 #ifdef EASYDBUS_DEBUG
00082    char *signature = NULL;
00083 #endif
00084
00085    if (container == NULL || iter == NULL)
00086       return NULL;
00087
00088    dict_entry =
00089       easydbus_container_create_skeleton (EASYDBUS_ELTYPE_DICT_ENTRY);
00090
00091    if (dict_entry == NULL)
00092       return NULL;
00093
00094
00095    // see if there a dedicated function to inizialize
00096    // this variable.
00097    memset (&subiter, 0, sizeof (DBusMessageIter));
00098
00099    dbus_message_iter_recurse (iter, &subiter);
00100
00101 #ifdef EASYDBUS_DEBUG
00102    signature = dbus_message_iter_get_signature (&subiter);
00103    EasyDbusDebug ("Current Signature = %s", signature);
00104    dbus_free (signature);
00105 #endif
00106
00107    for (i = 0; i < 2; i++) {
00108       switch (dbus_message_iter_get_arg_type (&subiter)) {
00109          case DBUS_TYPE_STRING:
00110             dbus_message_iter_get_basic (&subiter, &string);
00111             EasyDbusDebug ("founded string = %s\n", string);
00112             easydbus_dict_entry_add_string (dict_entry, string);
00113             break;
00114          case DBUS_TYPE_INT32:
00115             dbus_message_iter_get_basic (&subiter, &i32);
00116             EasyDbusDebug ("founded int32 = %d", i32);
00117             easydbus_dict_entry_add_i32 (dict_entry, i32);
00118             break;
00119          case DBUS_TYPE_UINT32:
00120             dbus_message_iter_get_basic (&subiter, &ui32);
00121             EasyDbusDebug ("founded uint32 = %d", ui32);
00122             easydbus_dict_entry_add_ui32 (dict_entry, ui32);
00123             break;
00124          case DBUS_TYPE_INT16:
00125             dbus_message_iter_get_basic (&subiter, &i16);
00126             EasyDbusDebug ("founded int16 = %d", i16);
00127             easydbus_dict_entry_add_i16 (dict_entry, i16);
00128             break;
00129          case DBUS_TYPE_UINT16:
00130             dbus_message_iter_get_basic (&subiter, &ui16);
00131             EasyDbusDebug ("founded uint16 = %d", ui16);
00132             easydbus_dict_entry_add_ui16 (dict_entry, ui16);
00133             break;
00134          case DBUS_TYPE_INT64:
00135             dbus_message_iter_get_basic (&subiter, &i64);
00136             EasyDbusDebug ("founded int64 = %lld", i64);
00137             easydbus_dict_entry_add_i64 (dict_entry, i64);
00138             break;
00139          case DBUS_TYPE_UINT64:
00140             dbus_message_iter_get_basic (&subiter, &ui64);
00141             EasyDbusDebug ("founded uint64 = %lld", ui64);
00142             easydbus_dict_entry_add_ui64 (dict_entry, ui64);
00143             break;
00144          case DBUS_TYPE_BYTE:
00145             dbus_message_iter_get_basic (&subiter, &byte);
00146             EasyDbusDebug ("founded byte = %d", byte);
00147             easydbus_dict_entry_add_byte (dict_entry, byte);
00148             break;
00149          case DBUS_TYPE_BOOLEAN:
00150             dbus_message_iter_get_basic (&subiter, &byte);
00151             EasyDbusDebug ("founded boolean = %d", byte);
00152             easydbus_dict_entry_add_boolean (dict_entry, byte);
00153             break;
00154          case DBUS_TYPE_DOUBLE:
00155             dbus_message_iter_get_basic (&subiter, &d);
00156             EasyDbusDebug ("founded double = %f", d);
00157             easydbus_dict_entry_add_double (dict_entry, d);
00158             break;
00159          case DBUS_TYPE_OBJECT_PATH:
00160             dbus_message_iter_get_basic (&subiter, &string);
00161             EasyDbusDebug ("founded obj_path = %s\n", string);
00162             easydbus_dict_entry_add_obj_path (dict_entry, string);
00163             break;
00164          case DBUS_TYPE_SIGNATURE:
00165             dbus_message_iter_get_basic (&subiter, &string);
00166             EasyDbusDebug ("founded signature = %s\n", string);
00167             easydbus_dict_entry_add_signature (dict_entry, string);
00168             break;
00169          case DBUS_TYPE_VARIANT:
00170             variant = easydbus_variant_build_elem
00171                (type, (void *) container, &subiter);
00172             if (variant != NULL) {
00173                easydbus_dict_entry_add_variant (dict_entry, variant);
00174                EasyDbusDebug ("Added variant to container");
00175             }
00176             else
00177                EasyDbusDebug ("Error on add variant to container");
00178             break;
00179          default:
00180             goto error;
00181             break;
00182       }
00183       dbus_message_iter_next (&subiter);
00184    }
00185
00186    return dict_entry;
00187
00188  error:
00189    if (dict_entry != NULL)
00190       easydbus_container_free (dict_entry);
00191    return NULL;
00192 }

Here is the call graph for this function:

Generated on Thu Apr 10 10:01:16 2008 for EasyDbus-0.2 by  doxygen 1.5.4
