introspect
[service]

Collaboration diagram for introspect:

Detailed Description

Module for manage Introspection.

TO COMPLETE

Todo:

manage struct of struct as params of introspect functions.

Introspect Meta Information

Contact:: Daniele Rondina aka Ge@@ru <geaaru@gmail.com>

Status:: EasyDbus Core Library

License:: GPL

Contributor(s):

Daniele Rondina aka Ge@@ru <geaaru@gmail.com>

Define Documentation

#define EASYDBUS_INTROSPECT_ARG_DIRECTION_O "direction=\""

Definition at line 113 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_DIRECTION_O_L 11

Definition at line 115 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_NAME_TAG_O " <arg name=\""

Definition at line 105 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_NAME_TAG_O_L 15

Definition at line 107 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_SPACE "\" "

Definition at line 101 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_SPACE_L 2

Definition at line 103 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_TYPE_TAG_O "type=\""

Definition at line 109 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_ARG_TYPE_TAG_O_L 6

Definition at line 111 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_DIRECTION_IN "in"

Definition at line 117 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_DIRECTION_IN_L 2

Definition at line 119 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_DIRECTION_OUT "out"

Definition at line 121 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_DIRECTION_OUT_L 3

Definition at line 123 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_INTERFACE_TAG_C " </interface>\n"

Definition at line 81 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_INTERFACE_TAG_C_L 15

Definition at line 83 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_INTERFACE_TAG_O " <interface name=\""

Definition at line 77 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_INTERFACE_TAG_O_L 19

Definition at line 79 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_MEMCOPY	(	buf,
		offset,
		s,
		s_l	)

Value:

{ \
   memcpy (&buf[offset], s, s_l); \
   offset += s_l; \
}

Macro for manage write of introspect buffer.

For internal use only.

Definition at line 129 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer(), easydbus_introspect_set_object_buffer(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_METHOD "Introspect"

Definition at line 43 of file introspect_internal.h.

Referenced by easydbus_introspect_filter_func().

#define EASYDBUS_INTROSPECT_METHOD_TAG_C " </method>\n"

Definition at line 89 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_METHOD_TAG_C_L 13

Definition at line 91 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_METHOD_TAG_O " <method name=\""

Definition at line 85 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_METHOD_TAG_O_L 17

Definition at line 87 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_MSG DBUS_INTROSPECT_1_0_XML_DOCTYPE_DECL_NODE

Definition at line 38 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_MSG_COMMENT "\n"

Definition at line 40 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_C "</node>\n"

Definition at line 57 of file introspect_internal.h.

Referenced by easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_C_L 8

Definition at line 59 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT " <node name=\""

Definition at line 61 of file introspect_internal.h.

Referenced by easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT2 "<node name=\""

Definition at line 65 of file introspect_internal.h.

Referenced by easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT2_L 12

Definition at line 67 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT_C "\">\n"

Definition at line 69 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT_C_L 3

Definition at line 71 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), easydbus_introspect_get_reply_length(), easydbus_introspect_set_interface_buffer(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_INIT_L 13

Definition at line 63 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_O "<node>\n"

Definition at line 53 of file introspect_internal.h.

Referenced by easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_NODE_TAG_O_L 7

Definition at line 55 of file introspect_internal.h.

Referenced by easydbus_introspect_get_reply_length(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_SIGNAL_TAG_C " </signal>\n"

Definition at line 97 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_SIGNAL_TAG_C_L 13

Definition at line 99 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_SIGNAL_TAG_O " <signal name=\""

Definition at line 93 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_SIGNAL_TAG_O_L 17

Definition at line 95 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), and easydbus_introspect_set_interface_buffer().

#define EASYDBUS_INTROSPECT_TAG_END "\"/>\n"

Definition at line 73 of file introspect_internal.h.

Referenced by easydbus_introspect_set_interface_buffer(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_TAG_END_L 4

Definition at line 75 of file introspect_internal.h.

Referenced by easydbus_introspect_get_interface_string_length(), easydbus_introspect_get_reply_length(), easydbus_introspect_set_interface_buffer(), and easydbus_introspect_set_reply_buffer().

#define EASYDBUS_INTROSPECT_XML_INTERFACE_DATA

Value:

"  <interface name=\"org.freedesktop.DBus.Introspectable\">\n" \
        "   <method name=\"Introspect\">\n" \
   "     <arg name=\"data\" type=\"s\" direction=\"out\" />\n" \
        "   </method>\n" \
        "  </interface>\n"

Definition at line 45 of file introspect_internal.h.

Referenced by easydbus_introspect_get_obj_string_length(), and easydbus_introspect_set_object_buffer().

Typedef Documentation

typedef struct introspect_objs_tree introspect_objs_tree

typedef for struct instrospect_objs_tree

Definition at line 137 of file introspect_internal.h.

Function Documentation

int easydbus_add_info_field_on_register_method	(	EasyDbus_obj_method *	method,
		unsigned char	offset,
		char *	name_field,
		unsigned char	type,
			...
	)

Add information for introspectable interface about EasyDbus_obj_method object of register method.

Parameters:

	type	0 --> input, 1 --> output.
	method	method where add new info data.
	offset	offset of element on argument on method.
	name_field	arg name.

Returns:: -1 on error
0 ok

Definition at line 63 of file introspect.c.

References easydbus_add_elem_to_stack(), easydbus_add_new_field_to_list(), easydbus_create_arg_signature(), EASYDBUS_ELTYPE_INVALID, easydbus_free_elem_from_stack_list(), easydbus_free_introspect_info_arg(), EASYDBUS_MEMCOPY, EasyDbus_obj_method::input_info, easydbus_introspect_arg_info::name, easydbus_introspect_arg_info::next, easydbus_introspect_arg_info::offset, EasyDbus_obj_method::output_info, and easydbus_introspect_arg_info::signature.

00067 {
00068    struct easydbus_introspect_arg_info *el, *list;
00069    struct easydbus_signature_elem_stack *list_elem;
00070    enum el_type elem = EASYDBUS_ELTYPE_INVALID;
00071    int name_length = 0;
00072    va_list ap;
00073
00074    if (method == NULL || name_field == NULL || type > 1)
00075       return -1;
00076
00077    list = el = NULL;
00078    list_elem = NULL;
00079
00080    if (type)
00081       list = method->output_info;
00082    else
00083       list = method->input_info;
00084
00085    if (list != NULL) {
00086       // check if there is already a info about
00087       // a field with an offset == offset
00088       el = list;
00089       while (el != NULL) {
00090          if (el->offset == offset)
00091             return -1;
00092          el = el->next;
00093       }
00094    }
00095
00096    el = (struct easydbus_introspect_arg_info *)
00097       malloc (sizeof (struct easydbus_introspect_arg_info));
00098    if (el == NULL)
00099       return -1;
00100
00101    /* initialize new element */
00102    memset (el, 0,
00103            sizeof (struct easydbus_introspect_arg_info));
00104    el->name = el->signature = NULL;
00105    el->next = NULL;
00106
00107    /* get elements list */
00108    va_start (ap, type);
00109
00110    /* recover data from input params list */
00111    elem = va_arg (ap, enum el_type);
00112
00113    while (elem != EASYDBUS_ELTYPE_INVALID) {
00114       list_elem =
00115          easydbus_add_elem_to_stack (elem, list_elem);
00116       elem = va_arg (ap, enum el_type);
00117    }
00118    va_end (ap);
00119
00120    el->signature =
00121       easydbus_create_arg_signature (list_elem);
00122    if (el->signature == NULL)
00123       goto error;
00124    list_elem = NULL;
00125
00126    name_length = strlen (name_field) + 1;
00127    el->name = (char *) malloc (name_length);
00128    if (el->name == NULL)
00129       goto error;
00130
00131    EASYDBUS_MEMCOPY (el->name, name_field, name_length);
00132    el->offset = offset;
00133
00134    if (easydbus_add_new_field_to_list (el, &list))
00135       goto error;
00136
00137    if (type)
00138       method->output_info = list;
00139    else
00140       method->input_info = list;
00141
00142
00143    return 0;
00144
00145  error:
00146    if (el != NULL)
00147       easydbus_free_introspect_info_arg (el);
00148
00149    easydbus_free_elem_from_stack_list (list_elem);
00150
00151    return -1;
00152 }

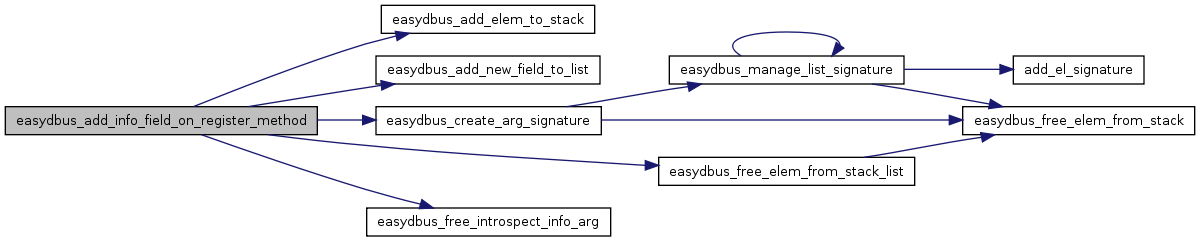

Here is the call graph for this function:

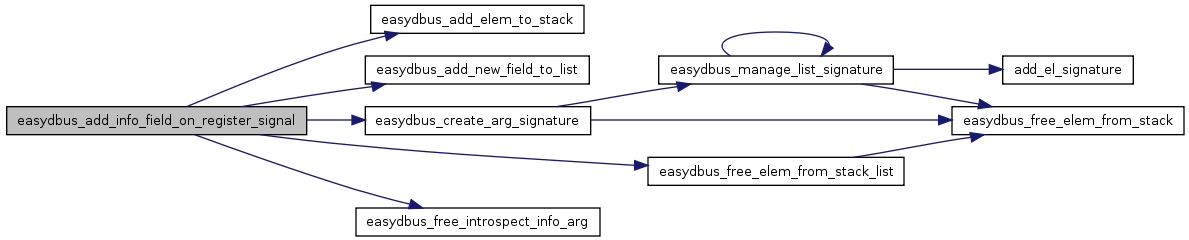

int easydbus_add_info_field_on_register_signal	(	EasyDbus_obj_signal *	signal,
		unsigned char	offset,
		char *	name_field,
			...
	)

Add information for introspectable interface about EasyDbus_obj_signal object of register signal.

Parameters:

	signal	signal where add new info data.
	offset	offset of element on argument on signal.
	name_field	arg name.

Returns:: -1 on error
0 ok

Definition at line 165 of file introspect.c.

References easydbus_add_elem_to_stack(), easydbus_add_new_field_to_list(), easydbus_create_arg_signature(), EASYDBUS_ELTYPE_INVALID, easydbus_free_elem_from_stack_list(), easydbus_free_introspect_info_arg(), EASYDBUS_MEMCOPY, easydbus_introspect_arg_info::name, easydbus_introspect_arg_info::next, easydbus_introspect_arg_info::offset, EasyDbus_obj_signal::output_info, and easydbus_introspect_arg_info::signature.

00168 {
00169    struct easydbus_introspect_arg_info *el = NULL;
00170    struct easydbus_signature_elem_stack *list_elem;
00171    enum el_type elem = EASYDBUS_ELTYPE_INVALID;
00172    int name_length = 0;
00173    va_list ap;
00174
00175    if (signal == NULL || name_field == NULL)
00176       return -1;
00177
00178    list_elem = NULL;
00179
00180    if (signal->output_info != NULL) {
00181       // check if there is already a info about
00182       // a field with an offset == offset
00183       el = signal->output_info;
00184       while (el != NULL) {
00185          if (el->offset == offset)
00186             return -1;
00187          el = el->next;
00188       }
00189    }
00190
00191    el = (struct easydbus_introspect_arg_info *)
00192       malloc (sizeof (struct easydbus_introspect_arg_info));
00193    if (el == NULL)
00194       return -1;
00195
00196    /* initialize new element */
00197    memset (el, 0,
00198            sizeof (struct easydbus_introspect_arg_info));
00199    el->name = NULL;
00200    el->next = NULL;
00201
00202    /* get elements list */
00203    va_start (ap, name_field);
00204
00205    /* recover data from input params list */
00206    elem = va_arg (ap, enum el_type);
00207
00208    while (elem != EASYDBUS_ELTYPE_INVALID) {
00209       list_elem =
00210          easydbus_add_elem_to_stack (elem, list_elem);
00211       elem = va_arg (ap, enum el_type);
00212    }
00213    va_end (ap);
00214
00215    el->signature =
00216       easydbus_create_arg_signature (list_elem);
00217    if (el->signature == NULL)
00218       goto error;
00219    list_elem = NULL;
00220
00221    name_length = strlen (name_field) + 1;
00222    el->name = (char *) malloc (name_length);
00223    if (el->name == NULL)
00224       goto error;
00225
00226    EASYDBUS_MEMCOPY (el->name, name_field, name_length);
00227    el->offset = offset;
00228
00229    if (easydbus_add_new_field_to_list
00230        (el, &signal->output_info))
00231       goto error;
00232
00233    return 0;
00234
00235  error:
00236    if (el != NULL)
00237       easydbus_free_introspect_info_arg (el);
00238
00239    easydbus_free_elem_from_stack_list (list_elem);
00240
00241    return -1;
00242 }

Here is the call graph for this function:

int easydbus_enable_introspect_check	(	EasyDbus_conn *	data,
		EasyDbus_object *	object,
		char *	obj_path
	)

Enable introspect method filter for automatic management and reply for message sent to Introspectable interface of an object.

Note:: This function must be called before easydbus_register_object.

Returns:: -1 on error
0 ok

Definition at line 256 of file introspect.c.

References easydbus_introspect_create_reply_string(), easydbus_introspect_objs_tree_build(), easydbus_introspect_objs_tree_destroy(), and EasyDbus_core::handled_introspect.

00259 {
00260    struct EasyDbus_core *core =
00261       (struct EasyDbus_core *) data;
00262    char *introspect_string = NULL;
00263    introspect_objs_tree *t = NULL;
00264
00265    if (!data || !object)
00266       return -1;
00267
00268
00269    t = easydbus_introspect_objs_tree_build ((struct EasyDbus_object_box *)
00270                                              object);
00271    if (!t) return -1;
00272
00273    /* check if this is needed */
00274    introspect_string =
00275       easydbus_introspect_create_reply_string (obj_path, t,
00276                                                (struct EasyDbus_object_box *)
00277                                                 object);
00278
00279    easydbus_introspect_objs_tree_destroy (t);
00280
00281    if (!introspect_string)
00282       return -1;
00283    free (introspect_string);
00284
00285    core->handled_introspect = 1;
00286
00287    return 0;
00288 }

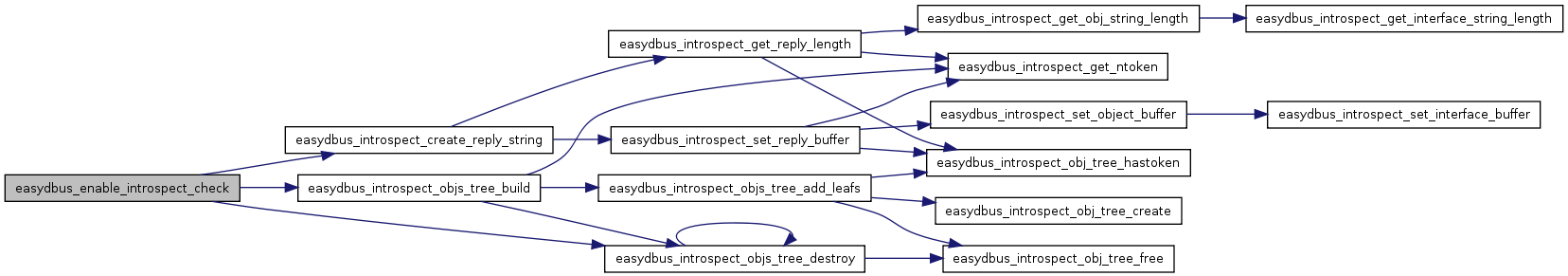

Here is the call graph for this function:

Generated on Thu Apr 10 10:02:57 2008 for EasyDbus-0.2 by

1.5.4


Data Structures
struct	easydbus_introspect_arg_info
	easydbus_introspect_arg_info object Used for manage automatic creation of introspect method on an object More...
struct	introspect_objs_tree
	Introspect object tree that is used for create a tree of object managed from service. More...
Defines
#define	EASYDBUS_INTROSPECT_ARG_DIRECTION_O "direction=\""
#define	EASYDBUS_INTROSPECT_ARG_DIRECTION_O_L 11
#define	EASYDBUS_INTROSPECT_ARG_NAME_TAG_O " <arg name=\""
#define	EASYDBUS_INTROSPECT_ARG_NAME_TAG_O_L 15
#define	EASYDBUS_INTROSPECT_ARG_SPACE "\" "
#define	EASYDBUS_INTROSPECT_ARG_SPACE_L 2
#define	EASYDBUS_INTROSPECT_ARG_TYPE_TAG_O "type=\""
#define	EASYDBUS_INTROSPECT_ARG_TYPE_TAG_O_L 6
#define	EASYDBUS_INTROSPECT_DIRECTION_IN "in"
#define	EASYDBUS_INTROSPECT_DIRECTION_IN_L 2
#define	EASYDBUS_INTROSPECT_DIRECTION_OUT "out"
#define	EASYDBUS_INTROSPECT_DIRECTION_OUT_L 3
#define	EASYDBUS_INTROSPECT_INTERFACE_TAG_C " </interface>\n"
#define	EASYDBUS_INTROSPECT_INTERFACE_TAG_C_L 15
#define	EASYDBUS_INTROSPECT_INTERFACE_TAG_O " <interface name=\""
#define	EASYDBUS_INTROSPECT_INTERFACE_TAG_O_L 19
#define	EASYDBUS_INTROSPECT_MEMCOPY(buf, offset, s, s_l)
	Macro for manage write of introspect buffer.
#define	EASYDBUS_INTROSPECT_METHOD "Introspect"
#define	EASYDBUS_INTROSPECT_METHOD_TAG_C " </method>\n"
#define	EASYDBUS_INTROSPECT_METHOD_TAG_C_L 13
#define	EASYDBUS_INTROSPECT_METHOD_TAG_O " <method name=\""
#define	EASYDBUS_INTROSPECT_METHOD_TAG_O_L 17
#define	EASYDBUS_INTROSPECT_MSG DBUS_INTROSPECT_1_0_XML_DOCTYPE_DECL_NODE
#define	EASYDBUS_INTROSPECT_MSG_COMMENT "<!-- Created with EasyDbus Library by Ge@@ru -->\n"
#define	EASYDBUS_INTROSPECT_NODE_TAG_C "</node>\n"
#define	EASYDBUS_INTROSPECT_NODE_TAG_C_L 8
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT " <node name=\""
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT2 "<node name=\""
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT2_L 12
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT_C "\">\n"
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT_C_L 3
#define	EASYDBUS_INTROSPECT_NODE_TAG_INIT_L 13
#define	EASYDBUS_INTROSPECT_NODE_TAG_O "<node>\n"
#define	EASYDBUS_INTROSPECT_NODE_TAG_O_L 7
#define	EASYDBUS_INTROSPECT_SIGNAL_TAG_C " </signal>\n"
#define	EASYDBUS_INTROSPECT_SIGNAL_TAG_C_L 13
#define	EASYDBUS_INTROSPECT_SIGNAL_TAG_O " <signal name=\""
#define	EASYDBUS_INTROSPECT_SIGNAL_TAG_O_L 17
#define	EASYDBUS_INTROSPECT_TAG_END "\"/>\n"
#define	EASYDBUS_INTROSPECT_TAG_END_L 4
#define	EASYDBUS_INTROSPECT_XML_INTERFACE_DATA
Typedefs
typedef struct introspect_objs_tree	introspect_objs_tree
Functions
int	easydbus_add_info_field_on_register_method (EasyDbus_obj_method method, unsigned char offset, char name_field, unsigned char type,...)
	Add information for introspectable interface about EasyDbus_obj_method object of register method.
int	easydbus_add_info_field_on_register_signal (EasyDbus_obj_signal signal, unsigned char offset, char name_field,...)
	Add information for introspectable interface about EasyDbus_obj_signal object of register signal.
int	easydbus_enable_introspect_check (EasyDbus_conn data, EasyDbus_object object, char *obj_path)
	Enable introspect method filter for automatic management and reply for message sent to Introspectable interface of an object.

introspect [service]

Detailed Description

Introspect Meta Information

Data Structures

Defines

Typedefs

Functions

Define Documentation

Typedef Documentation

Function Documentation

introspect
[service]
