object
[service]

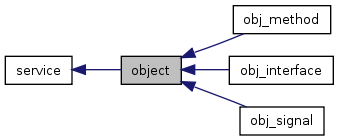

Collaboration diagram for object:

Detailed Description

Module for manage Dbus Object handling

TO COMPLETE

Object Meta Information

Contact:
Daniele Rondina aka Ge@@ru <geaaru@gmail.com>
Status:
EasyDbus Core Library
License:
GPL
Contributor(s):


Modules

 obj_method
 obj_signal
 obj_interface

Data Structures

struct  EasyDbus_object
 EasyDbus_object object. More...
struct  EasyDbus_object_box
 EasyDbus_object_box object Box of visible EasyDbus_object. This struct is created when it is called easydbus_object_create_skeleton function and it is returned first field of this struct. More...

Functions

struct EasyDbus_object_box * easydbus_get_obj (struct EasyDbus_object_box *objects, const char *object_path)
 Recover EasyDbus_object_box with object path passed in input from a list of objects.
int easydbus_object_add_interface (EasyDbus_obj_interface *interface, EasyDbus_object *object)
 Add interface to EasyDbus_object object.
EasyDbus_object * easydbus_object_create_skeleton (char *path, void *user_data)
 Create object skeleton for publish an object through DBUS.
void easydbus_object_free_skeleton (EasyDbus_object *object)
 Free EasyDbus_object object and interfaces connect to it.
void * easydbus_object_get_closure (EasyDbus_object *object)
 Get closure of EasyDbus_object object.
EasyDbus_obj_interface * easydbus_object_get_interface (EasyDbus_object *object, unsigned int n)
 Get n-EasyDbus_obj_interface of object.
int easydbus_object_get_n_interfaces (EasyDbus_object *object)
 Get path of an EasyDbus_object object.
const char * easydbus_object_get_path (EasyDbus_object *object)
 Get path of an EasyDbus_object object.
int easydbus_object_register (EasyDbus_conn *data, EasyDbus_object *object)
 Register object on DBus.
void easydbus_object_set_closure (EasyDbus_object *object, void *user_data)
 Set closure of EasyDbus_object object.
int easydbus_object_unregister (EasyDbus_conn *data, EasyDbus_object *object)
 Unregister EasyDbus_object object from DBus.
EasyDbus_reply * easydbus_verify_match_and_prepare_reply (struct EasyDbus_obj_interface *interface, DBusMessage *msg, const char *msg_interface, const char *member_name, int *return_value)
 Found.

Function Documentation

struct EasyDbus_object_box* easydbus_get_obj ( struct EasyDbus_object_box *  objects,
const char *  object_path
) [read]

Recover EasyDbus_object_box with object path passed in input from a list of objects.

For internal use only.

Parameters:
objects list of objects
object_path object path string of the object to found.
Returns:
pointer to object with object path equat to object_path.

NULL no object founded.

Definition at line 1077 of file utils.c.

References EasyDbus_object_box::core, EasyDbus_object_box::next, and EasyDbus_object::path.

Referenced by easydbus_obj_path_msg_function().

01079 {
01080
01081    while (objects != NULL) {
01082       if (!strcmp (object_path, objects->core.path))
01083          return objects;
01084       objects = objects->next;
01085    }
01086    return NULL;
01087 }

int easydbus_object_add_interface ( EasyDbus_obj_interface *  interface,
EasyDbus_object *  object
)

Add interface to EasyDbus_object object.

Parameters:
interface EasyDbus_obj_interface object pointer
object EasyDbus_object object pointer
Returns:
-1 error

0 ok

Definition at line 107 of file register_obj.c.

References EasyDbusDebug, EasyDbus_object::handled_interfaces, EasyDbus_obj_interface::name, EasyDbus_obj_interface::next, and EasyDbus_object::path.

00109 {
00110    struct EasyDbus_obj_interface *temp;
00111
00112    if (!interface || !object)
00113       return -1;
00114
00115    if (!object->handled_interfaces)
00116       object->handled_interfaces = interface;
00117    else {
00118       temp = object->handled_interfaces;
00119       while (temp->next)
00120          temp = temp->next;
00121       temp->next = interface;
00122    }
00123
00124    object->n_interfaces++;
00125
00126    EasyDbusDebug ("Added interface %s to object %s",
00127                   interface->name, object->path);
00128
00129    return 0;
00130 }

EasyDbus_object* easydbus_object_create_skeleton ( char *  path,
void *  user_data
)

Create object skeleton for publish an object through DBUS.

Parameters:
path path of object
user_data pointer to user_data used on functions.
Returns:
NULL on error

pointer EasyDbus_object object.

Definition at line 59 of file register_obj.c.

References EasyDbus_object_box::core, EASYDBUS_MEMCOPY, EasyDbusDebug, and EasyDbus_object::path.

00060 {
00061    struct EasyDbus_object_box *object;
00062    int path_length;
00063
00064    if (!path)
00065       return NULL;
00066
00067    object = (struct EasyDbus_object_box *)
00068       malloc (sizeof (struct EasyDbus_object_box));
00069
00070    if (!object)
00071       return NULL;
00072    memset (object, 0, sizeof (struct EasyDbus_object_box));
00073
00074    path_length = strlen (path) + 1;
00075
00076    object->core.path = (char *) malloc (path_length);
00077    if (!object->core.path)
00078       goto out_of_memory;
00079
00080    EASYDBUS_MEMCOPY (object->core.path, path, path_length);
00081
00082    object->core.handled_interfaces = NULL;
00083
00084    if (user_data)
00085       object->core.user_data = user_data;
00086
00087    object->next = NULL;
00088
00089    EasyDbusDebug ("Create object core with" " path %s", path);
00090
00091    return (EasyDbus_object *) object;
00092
00093  out_of_memory:
00094    if (object)
00095       free (object);
00096    return NULL;
00097 }

void easydbus_object_free_skeleton ( EasyDbus_object *  object  )

Free EasyDbus_object object and interfaces connect to it.

Note:
User_data passed isn't free.
Parameters:
object EasyDbus_object object pointer

Definition at line 296 of file register_obj.c.

References easydbus_obj_interface_free_skeleton(), EasyDbusDebug, EasyDbus_object::handled_interfaces, EasyDbus_obj_interface::next, and EasyDbus_object::path.

Referenced by easydbus_conn_destroy().

00297 {
00298    struct EasyDbus_obj_interface *interface;
00299    struct EasyDbus_object_box *obj =
00300       (struct EasyDbus_object_box *) object;
00301
00302    if (!object)
00303       return;
00304
00305    EasyDbusDebug ("Free of object skeleton %s", object->path);
00306
00307    if (object->path)
00308       free (object->path);
00309
00310    while (object->handled_interfaces) {
00311       interface = object->handled_interfaces;
00312       object->handled_interfaces = interface->next;
00313       easydbus_obj_interface_free_skeleton (interface);
00314    }
00315
00316    object->user_data = NULL;
00317
00318    free (obj);
00319 }

Here is the call graph for this function:

void* easydbus_object_get_closure ( EasyDbus_object *  object  )  [inline]

Get closure of EasyDbus_object object.

Parameters:
object pointer to EasyDbus_object object.
Returns:
pointer to user closure of EasyDbus_object object.

Definition at line 375 of file register_obj.c.

References EasyDbus_object::user_data.

00376 {
00377    return (object ? object->user_data : NULL);
00378 }

EasyDbus_obj_interface* easydbus_object_get_interface ( EasyDbus_object *  object,
unsigned int  n
)

Get n-EasyDbus_obj_interface of object.

Precondition:
  • object != NULL
  • n <= number of interfaces of object.
Parameters:
object pointer to EasyDbus_object object.
n number of the interface to get.
Returns:
NULL on error.

pointer to EasyDbus_obj_interface.

Definition at line 356 of file register_obj.c.

References EasyDbus_object::handled_interfaces, and EasyDbus_object_box::next.

00358 {
00359    unsigned int i;
00360    EasyDbus_obj_interface *ans = NULL;
00361
00362    if (object && ((int) n <= object->n_interfaces))
00363       for (i = 0, ans = object->handled_interfaces;
00364            i < n; i++, ans = ans->next);
00365
00366    return ans;
00367 }

int easydbus_object_get_n_interfaces ( EasyDbus_object *  object  )  [inline]

Get path of an EasyDbus_object object.

Parameters:
object EasyDbus_object object pointer.
Returns:
-1 on error

number of interfaces

Definition at line 340 of file register_obj.c.

References EasyDbus_object::n_interfaces.

00341 {
00342    return (object ? object->n_interfaces : -1);
00343 }

const char* easydbus_object_get_path ( EasyDbus_object *  object  )  [inline]

Get path of an EasyDbus_object object.

Parameters:
object EasyDbus_object object pointer.
Returns:
NULL on error

object path string.

Definition at line 328 of file register_obj.c.

References EasyDbus_object::path.

00329 {
00330    return (object ? (const char *) object->path : NULL);
00331 }

int easydbus_object_register ( EasyDbus_conn *  data,
EasyDbus_object *  object
)

Register object on DBus.

Parameters:
data EasyDbus_conn object pointer
object EasyDbus_object object to register.
Returns:
0 on

-1 error

Definition at line 246 of file register_obj.c.

References EasyDbus_core::conn, EasyDbus_object_box::core, easydbus_obj_path_msg_function(), easydbus_obj_path_unregister_function(), EasyDbusDebug, EasyDbus_core::n_objs, EasyDbus_object_box::next, EasyDbus_core::objects, EasyDbus_object::path, and EasyDbus_object_box::vtable.

00248 {
00249    struct EasyDbus_core *core = (struct EasyDbus_core *) data;
00250    struct EasyDbus_object_box *obj =
00251       (struct EasyDbus_object_box *) object;
00252    struct EasyDbus_object_box *temp = NULL;
00253
00254    if (!object || !data)
00255       return -1;
00256
00257    memset (&obj->vtable, 0, sizeof (DBusObjectPathVTable));
00258
00259    obj->vtable.message_function = easydbus_obj_path_msg_function;
00260    obj->vtable.unregister_function =
00261       easydbus_obj_path_unregister_function;
00262    obj->vtable.dbus_internal_pad1 = NULL;
00263    obj->vtable.dbus_internal_pad2 = NULL;
00264
00265    if (!dbus_connection_register_object_path (core->conn,
00266                                               (const char *) obj->
00267                                               core.path, &obj->vtable,
00268                                               core)) {
00269       EasyDbusDebug ("Error on register object %s", obj->core.path);
00270       return -1;
00271    }
00272    temp = core->objects;
00273
00274    if (core->n_objs) {
00275       while (temp->next)
00276          temp = temp->next;
00277       temp->next = obj;
00278    }
00279    else
00280       core->objects = obj;
00281    core->n_objs++;
00282
00283    EasyDbusDebug ("Register object %s", obj->core.path);
00284
00285    return 0;
00286 }

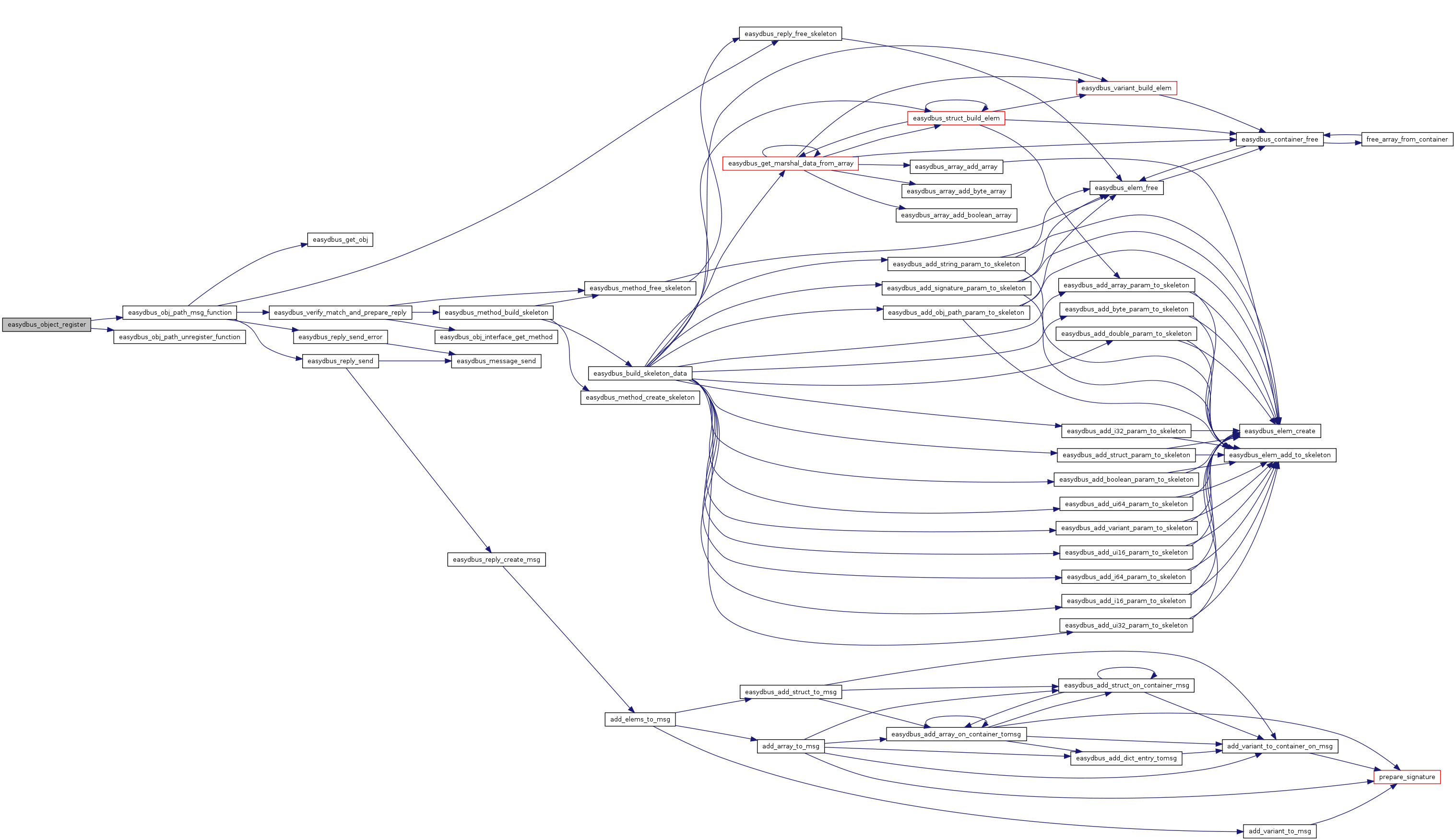

Here is the call graph for this function:

void easydbus_object_set_closure ( EasyDbus_object *  object,
void *  user_data
) [inline]

Set closure of EasyDbus_object object.

Parameters:
object pointer to EasyDbus_object object.
user_data user data closure pointer.

Definition at line 386 of file register_obj.c.

00388 {
00389    if (object) object->user_data = user_data;
00390 }

int easydbus_object_unregister ( EasyDbus_conn *  data,
EasyDbus_object *  object
)

Unregister EasyDbus_object object from DBus.

Parameters:
data EasyDbus_conn object pointer
object EasyDbus_object object pointer.
Returns:
-1 on error

0 ok

Definition at line 140 of file register_obj.c.

References EasyDbus_core::conn, EasyDbus_object_box::core, and EasyDbus_object::path.

Referenced by easydbus_conn_destroy().

00142 {
00143    struct EasyDbus_core *core = (struct EasyDbus_core *) data;
00144    struct EasyDbus_object_box *obj =
00145       (struct EasyDbus_object_box *) object;
00146
00147    if (!object || !data)
00148       return -1;
00149
00150    if (dbus_connection_unregister_object_path
00151        (core->conn, (const char *) obj->core.path))
00152       return -1;
00153
00154    return 0;
00155 }

EasyDbus_reply* easydbus_verify_match_and_prepare_reply ( struct EasyDbus_obj_interface *  interface,
DBusMessage *  msg,
const char *  msg_interface,
const char *  member_name,
int *  return_value
)

Found.

Parameters:
interface pointer to EasyDbus_obj_interface interface
msg pointer to msg receive through DBUS.
msg_interface interface name of msg. (can be equal to NULL)
member_name string for member of msg
return_value pointer to int where save result of function.
Returns:
pointer to reply to send.

NULL on error

Definition at line 179 of file register_obj_internal.c.

References EASYDBUS_ERROR, EASYDBUS_FAILURE_HANDLED, easydbus_method_build_skeleton(), easydbus_method_free_skeleton(), EASYDBUS_METHOD_HANDLED, EASYDBUS_METHOD_NOT_FOUND, easydbus_obj_interface_get_method(), EasyDbus_obj_method::method_callback, and EasyDbus_method::reply.

Referenced by easydbus_obj_path_msg_function().

00182 {
00183    int callback_retvalue;
00184    struct EasyDbus_obj_method *method = NULL;
00185    EasyDbus_method *method_skeleton = NULL;
00186    EasyDbus_reply *reply = NULL;
00187
00188    // manage method request
00189    method = easydbus_obj_interface_get_method (member_name,
00190                                                msg_interface,
00191                                                interface);
00192    if (!method) {
00193       *return_value = EASYDBUS_METHOD_NOT_FOUND;
00194       goto not_found;
00195    }
00196
00197    method_skeleton = easydbus_method_build_skeleton (msg);
00198    if (!method_skeleton) {
00199       *return_value = EASYDBUS_ERROR;
00200       goto not_found;
00201    }
00202    callback_retvalue = (int)
00203       method->method_callback (method_skeleton);
00204    // see if manage failure in this mannaer
00205    if (callback_retvalue == EASYDBUS_METHOD_HANDLED) {
00206       reply = method_skeleton->reply;
00207       *return_value = callback_retvalue;
00208    }
00209    else if (callback_retvalue == EASYDBUS_FAILURE_HANDLED)
00210       if (method_skeleton->reply) {
00211          reply = method_skeleton->reply;
00212          *return_value = callback_retvalue;
00213       }
00214    method_skeleton->reply = NULL;
00215    easydbus_method_free_skeleton (method_skeleton);
00216
00217    return reply;
00218
00219 not_found:
00220
00221    return NULL;
00222 }

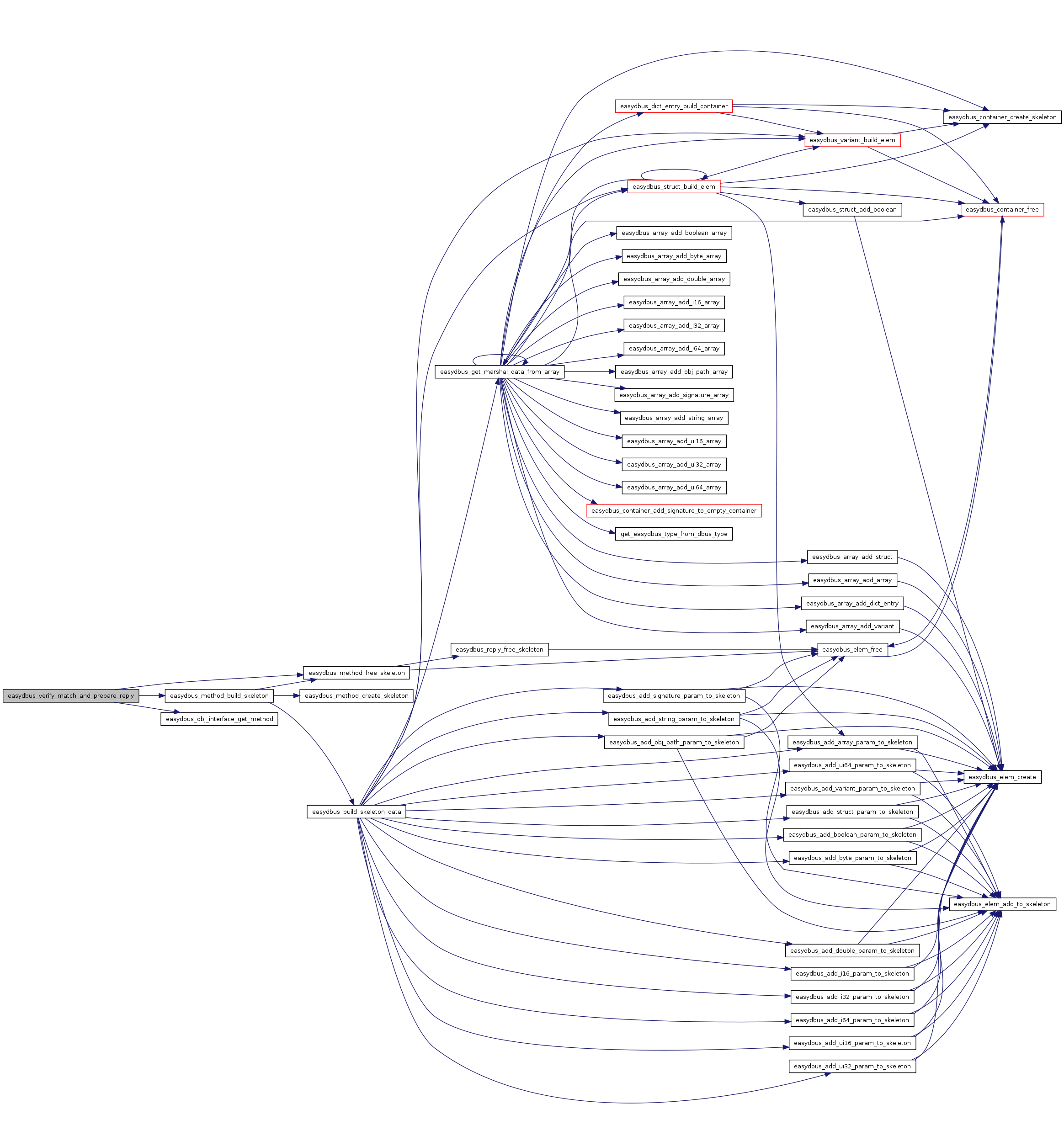

Here is the call graph for this function:

Generated on Thu Apr 10 10:03:10 2008 for EasyDbus-0.2 by  doxygen 1.5.4
